6x19 Seale (Drill Lane) - Deacero Wirerope

6x19 Seale

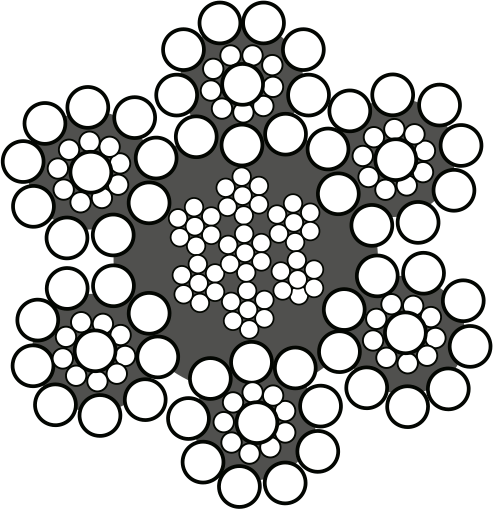

DRILL LINE 6x19S (9/9/1)

Designed to provide excellent strength and resistance to abrasion,
making it well-suited to be used as a rotary drill line.

19 to 26 wires per strand.
Flexibility and wear resistance.
Provides great ruggedness and resistance to abrasion and crushing.
Special lubricant that works on all different environments.

Download PDF

Available as Standard

Diameter (in)	Diameter (mm)	Weight (Ib/ft)	Minimum Breaking Force (tons for 2000 Ibs) EIPS 1960	Minimum Breaking Force (tons for 2000 Ibs) EEIPS 2160
7/8	22.2	1.42	39.8	43.8
1	25.4	1.85	51.7	56.9
1 1/8	28.6	2.34	65.0	71.5
1 1/4	31.8	2.89	79.9	87.9
1 3/8	34.9	3.50	96.0	106
1 1/2	38.1	4.16	114	125
1 5/8	41.3	4.88	132	146
1 3/4	44.5	5.67	153	169
1 7/8	47.6	6.50	174	192
2	50.8	7.39	198	217

Standard Lubricants

LUBE - A I Our lightest standard lube for enhanced handling.
LUBE - B I Excellent lubricity and corrosion protection.

LUBE - C I Heavy lube designed to give extra lubrication, corrosion protection,
enhanced durability, and reduced wear and heat generation.

LUBE - D I Heavy C lube that is also applied at stranding process. Creates
heaviest standard coat available for elevated heat and winter conditions.
SPECIAL LUBES I Specialty lubes available upon request.

**EEIPS made to order.
Contact your local representative
for availability.
